Liquid sealing
1. TUB - flush with the floor shower base
2. ELEMENT-EL - waterproof
construction panel
3. ARM-100 SK - reinforcing fabric for joints
4. COL-AK - fixing adhesive for levelling out the reinforced joints
5. DRY-DB - sealing tape for transitions
6. DRY-ASK - sealing filler for sealing in the
sealing tapes
7. DRY-DBIE - sealing tape as a shaped part
“Inner corner”
8. DRY-ASK - sealing filler, full-surface
Sealing strips
1. TUB - flush with the floor shower base
2. ELEMENT-EL - waterproof construction panel
3. COL-FLEX - mineral adhesive for the bonding of sealing film
4. DRY-DF - sealing film
5. DRY-ASK - sealing filler for bonding and
sealing in the sealing film and sealing tapes
6. DRY-DB - sealing tape for transitions
7. DRY-DBIE - sealing tape as a shaped part
“Inner corner”

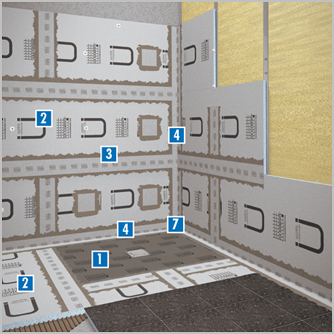

Plate-type-sealing elements
1. TUB - flush with the floor shower base
2. ELEMENT-VK - plate-type composite sealing
3. DRY-ASK - sealing filler for sealing in the sealing tapes
4. DRY-DBV - sealing tape for transitions
5. DRY-DBVIE - sealing tape as a shaped part
“Inner corner”
This wall structure also acts as a vapour barrier (sd value approx. 85 m)
- Practical instructions
-
The basis
Quality with the environment in mind
Working with hard foam support elements
The tools
Recommended cutting techniques for the ELEMENT construction panel
LUX ELEMENTS®- ELEMENT EL
LUX ELEMENTS®- ELEMENT-SL / SQ
Bending radii, slit spacings, dimensions of pre-slit hard foam
Processing instructions with slit panels
LUX ELEMENTS®- ELEMENT-VK
General processing instructions
Processing tips
The following materials are suitable for cladding hard foam support elements
- Application areas
-
Walls in interior areas
Attaching to masonry, concrete or plaster with mortar
Wall levelling over existing tile coverings
The multi-functional construction panel: application on the wall (example)
Application on free-standing metalsupports
The multi-functional construction panel: application on metal stud frame (example)
Wall-mounted elements
The creation of a levelling construction
Planking of a support construction
Floor applications
Application on beton or screed
Application on wooden floor boards
Application on the floor
The multi-functional construction panel: on mineral substrate (example)
Floor shower base
Composite sealings
- Construction & design
-
With straight panels
Partition walls or room dividers
With slit panels
- Practical examples
- Product
- Datasheets
-
LUX ELEMENTS®- ELEMENT-EL (411 KB) LUX ELEMENTS®- ELEMENT-SL/SQ 30, 50, 80 (134 KB) LUX ELEMENTS®- ELEMENT-VK (411 KB)
- Safety Data Sheets
-
- Installation instructions
- Product & packaging specs
- Systemcomponents
-
The proven and tested system components are fully matched to the processing of the hard foam support elements. The specially developed accessories ensure trouble-free working and high processing reliability.
LUX ELEMENTS®- ARM: Reinforcement fabric LUX ELEMENTS®- COL: Adhesives LUX ELEMENTS®- DRY: Sealing filler and sealing tapes LUX ELEMENTS®- FIX: Fastening sets and plugs/exterior LUX ELEMENTS®- MONT: Mounting aids
