LUX ELEMENTS TUB®- LINE H - Flush with the floor shower bases for the use on wooden sub-constructions

 In buildings concrete floors are not always found in bathrooms. Due to national circumstances or for ecological planning reasons, it may occur that a wooden planking on a bearing structure serves as substrate for a shower base.

For this application purpose, LUX ELEMENTS offers the models TUB-LINE H… (square or rectangular). Both models are equipped with a sealed-in floor channel drain 2 3/4 x 29 17/32 in on the short side.

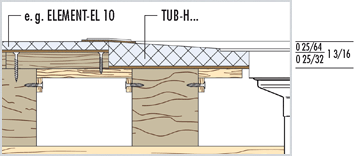

With an installation height of 0 25/32 / 1 3/16 in and a build-in 4-sided gradient, these shower bases are particularly flat and can be easily integrated into existing wooden floors.

Design cover rail

TUB-LINE HQ4 900

TUB-LINE HQ4 900

The system offers two design options due to a reversible channel cover rail. One side has a brushed stainless steel surface, the other can be tiled to match the entire shower base.

TUB-LINE HR4 1200/900

TUB-LINE HR4 1200/900

By simply turning the desired side faces upwards.



Height-adjustable

Height-adjustable for optimum adaptation to covering thickness Separately provided adapters that can be cut as required enable height adjustability of the channel for surface covering thicknesses from 0 13/64 to 0 43/64 in.

Note:
A planning expert is to be consulted when intervening in components with load-bearing function. Furthermore, national guidelines and generally recognised codes of practice must be observed.

The design of descending gradients and directions belongs to planning services.

Please note: Dimensions in inch. Measures without adhesive coating and tiles.








See also TUB-H
