LUX ELEMENTS® - LAVADO-FLOAT G*
* suitable for conventional fitted or top-mounted basins.
| Dimensions | |
| Width | 46 1/16 inch |
| Depth | 23 1/32 inch |
| Height | 3 15/16 inch |
LUX ELEMENTS® - LAVADO-FLOAT Z
| Dimensions | |
| Width | 46 1/16 inch |
| Depth | 23 1/32 inch |
| Height | 3 15/16 inch |
LUX ELEMENTS® - LAVADO-FLOAT E
| Dimensions | |
| Width | 46 1/16 inch |
| Depth | 23 1/32 inch |
| Height | 3 15/16 inch |

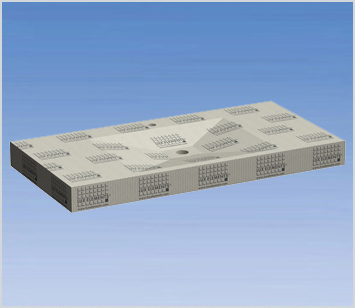

LUX ELEMENTS® - LAVADO-FLOAT R
| Dimensions | |
| Width | 46 1/16 inch |
| Depth | 23 1/32 inch |
| Height | 3 15/16 inch |
- Hard foam support element with fabric coating
- Basin recess with built-in slope
- Assembly openings for the simple assembly of drain and taps
- Plastic reinforcement with drill hole for tap and drain/ also suitable for three-hole taps
- Drilled holes for flexible use of the stainless steel brackets
- Stainless steel bracket with sturdy mounting plate
- Plastic reinforcement
Product specifications (PDF) (192 KB)
- Productgroup
-
LUX ELEMENTS LAVADO®
LUX ELEMENTS LAVADO®- FLOAT
The variants
- Individual, special manufacture
-
LUX ELEMENTS manufactures individual customised and special products for the LAVADO product group. These include dimensions, thicknesses, shapes etc. that deviate from the standard program.
- Datasheets
-
- Installation instructions
- Test certificates
- Product & packaging specs
- Systemcomponents
-
The proven and tested system components are fully matched to the processing of the hard foam support elements. The specially developed accessories ensure trouble-free working and high processing reliability.
